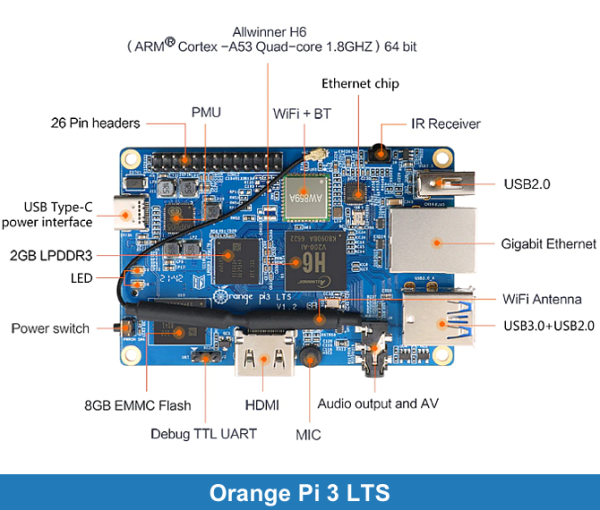

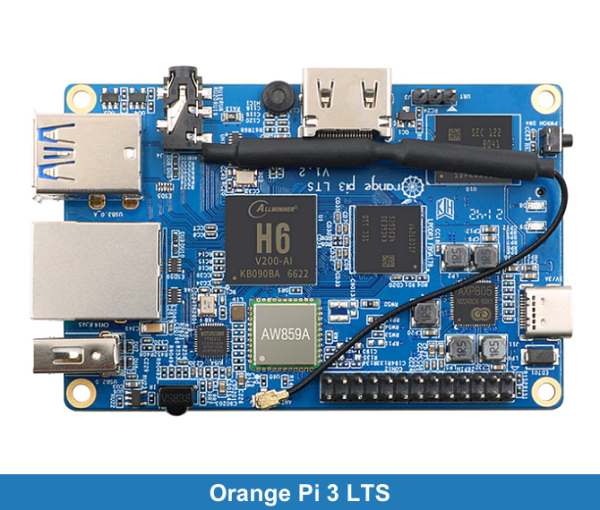

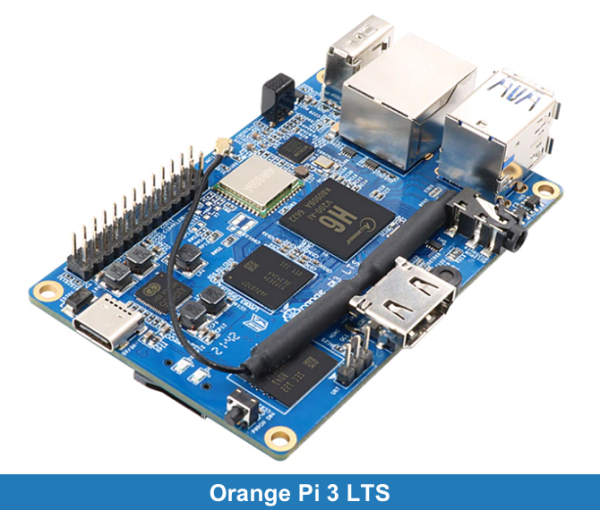

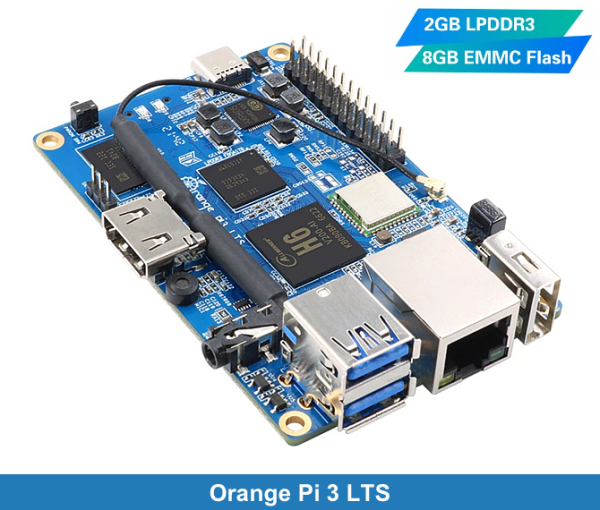

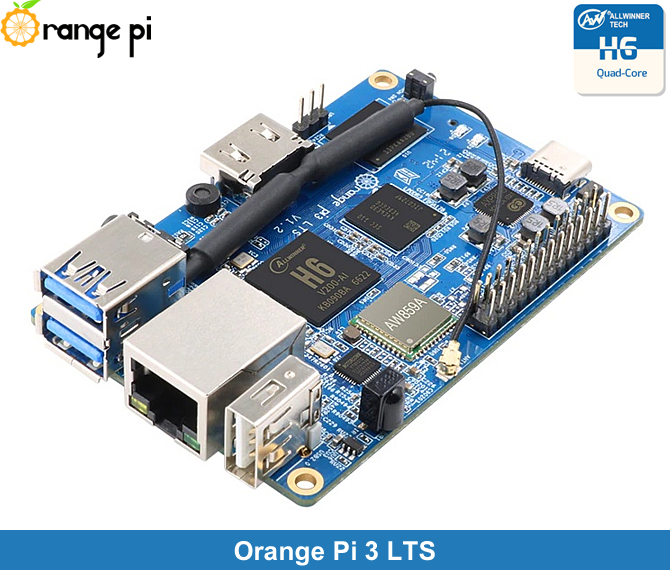

Orange Pi 3 LTS

  CPU

  Allwinner H6
  Quad-core 64-bit 1.8GHz high-performance Cortex-A53 processor

  GPU

  • High-performance multi-core GPU Mali T720
  • OpenGL ES3.1/3.0/2.0/1.1
  • Microsoft DirectX 11 FL9_3
  • ASTC(Adaptive Scalable Texture Compression)
  • Floating point operation greater than 70 GFLOPS

  Power management chip

  AXP805

  RAM

  2GB LPDDR3 (shared with GPU)

  Onboard Storage

  • Micro SD card slot
  • 8GB EMMC Flash

  Onboard Network

  • YT8531C Chip
  • Support 10/100M/1000M Ethernet

  Onboard WIFI+Bluetooth

  • AW859A Chip
  • Support IEEE 802.11 a/b/g/n/ac
  • Support BT5.0

  Video Output

  • HDMI 2.0a
  • TV CVBS Output

  Audio output

  • HDMI Output
  • 3.5mm Audio Port

  PowerSource

  5V3A Type-C

  USB

  1* USB 3.0 HOST、2* USB 2.0 HOST

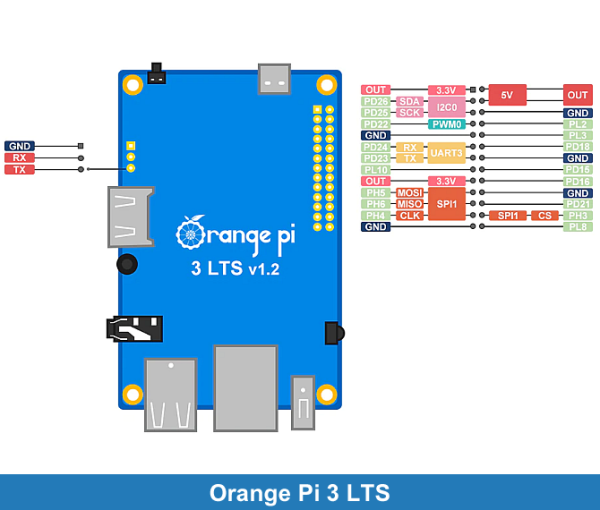

  Low-level peripherals

  26pin connector with1* I2C, 1*SPI, 1*UART &Multiple GPIO Ports

  Debug serial port

  UART-TX、UART-RX & GND

  Button

  Power Button (SW4)

  LED

  Power LED& Status LED

  IR Receiver

  Support IR Remote Control

  Supported OS

  Android 9.0、Ubuntu、Debian

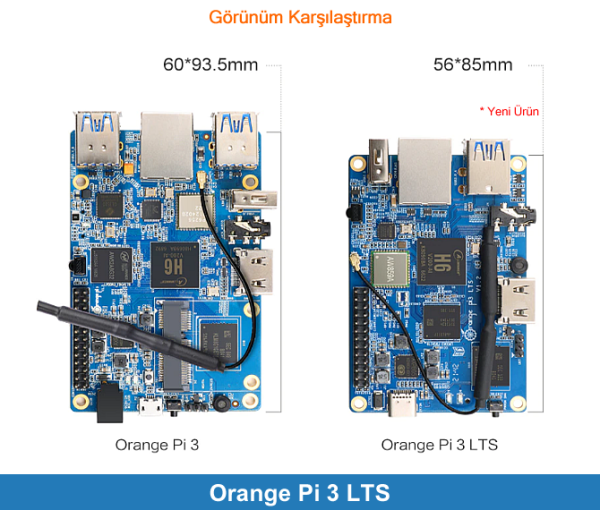

  Appearance specification introduction

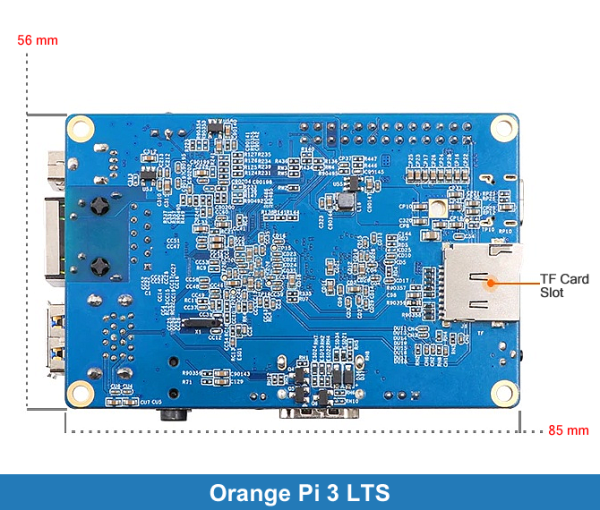

  Dimension

  56mm*85mm

  Weight

  45g
