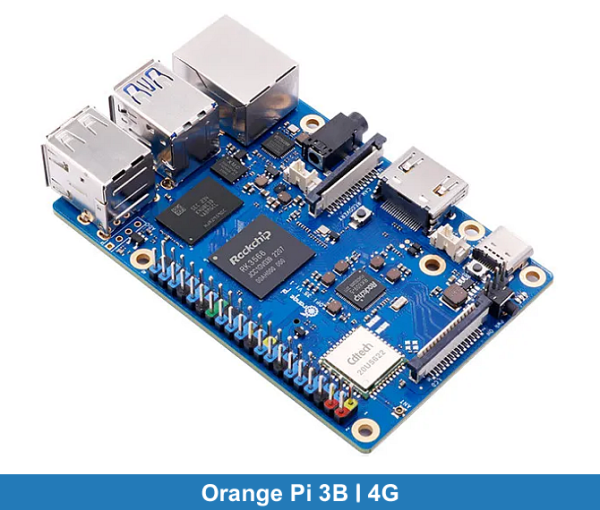

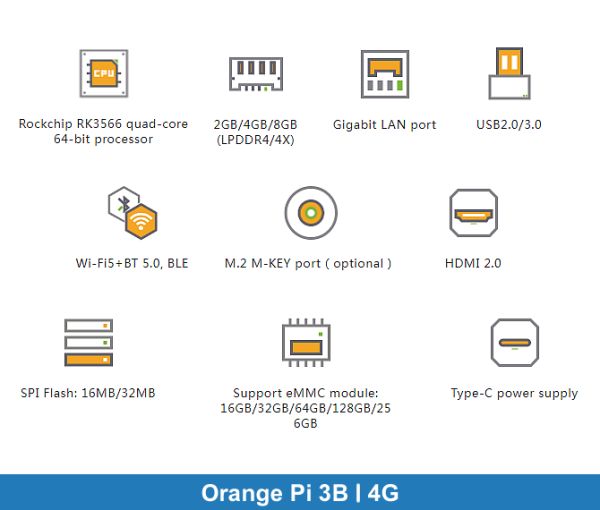

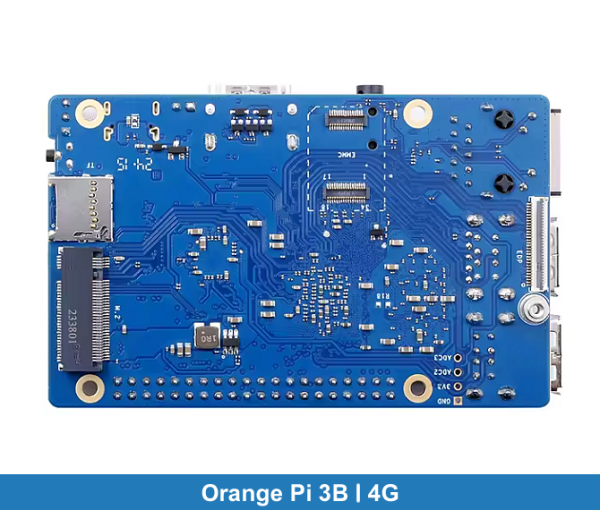

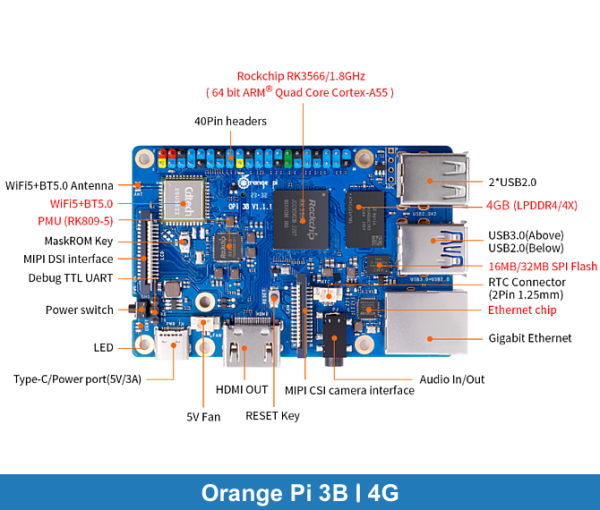

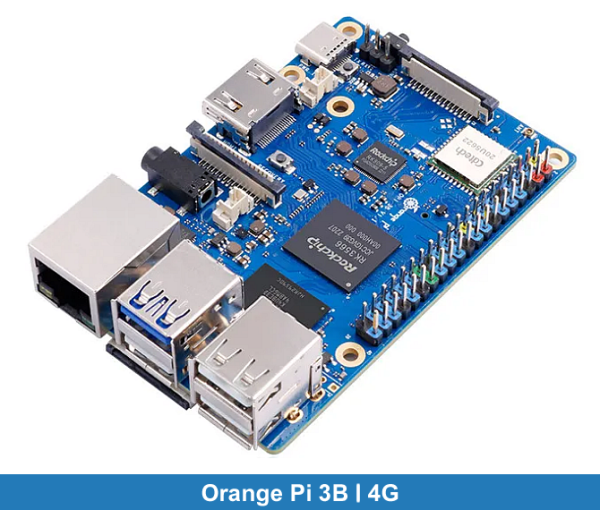

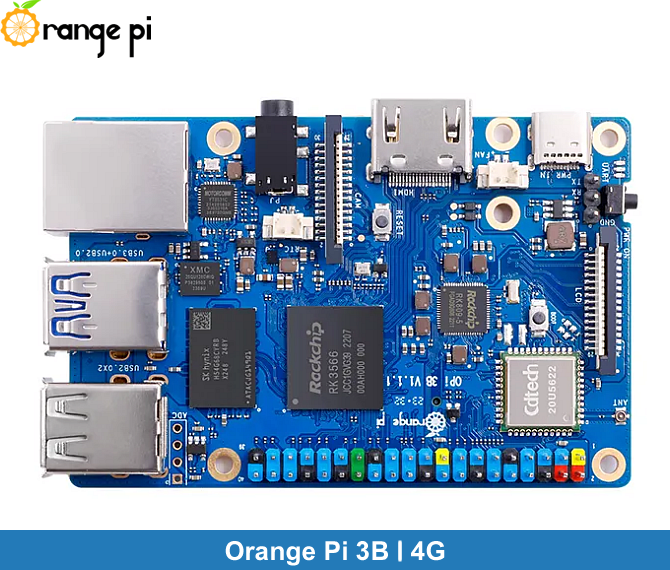

Orange Pi 3B | 4GB

SoC

RockchipRK3566

CPU

Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz

GPU

• ARM Mali G52 2EE graphics processor
• upport OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
• Embedded high performance 2D acceleration hardware

NPU

• Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance
• Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models

VPU

• 4K@60fps H.265/H.264/VP9 video decoding
• 1080P@100fps H.265 video encoding
• 1080P@60fps H.264 video encoding

PMU

RockChip RK809-5

RAM

4GB（LPDDR4/4x）

Memory

• Support eMMC module:16GB/32GB/64GB/128GB/256GB
• SPI Flash: 16MB/32MB
• M.2 M-KEY slot（optional）: SATA3 or PCIe2.0 NVME SSDs
• Micro SD slot

Wi-Fi+BT

Wi-Fi 5+BT 5.0，BLE（AP6256）

Ethernet

10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C-CA )

Video Output

• 1* HDMI TX 2.0 , up to 4K@60fps
• 1*MIPI DSI 2 lane
• eDP1.3

Camera

1*MIPI CSI 2 lane camera interface

USB

• 1*USB 2.0 support Device or HOST mode
• 1*USB 3.0 HOST
• 2*USB 2.0 HOST

Audio

3.5mm headphone jack audio in/out

Button

1* MaskROM key, 1* RESET key, 1 *POWER key

FAN

2Pin 1.25mm size 5V fan connector

RTC

2Pin 1.25mm size battery backup connector

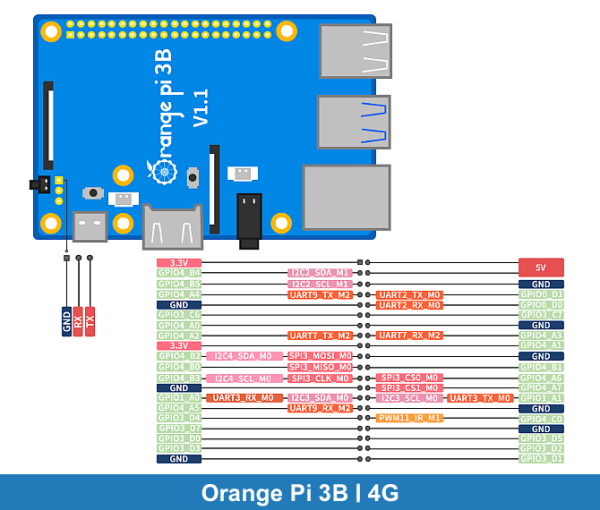

40Pin

40Pin functional expansion interface, supporting the following interface types:
GPIO, UART, I2C, SPI, PWM

Power Source

Type-C 5V3A

Supported OS

Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch),

Orange Pi OS (OH) based on OpenHarmony and other operating systems.

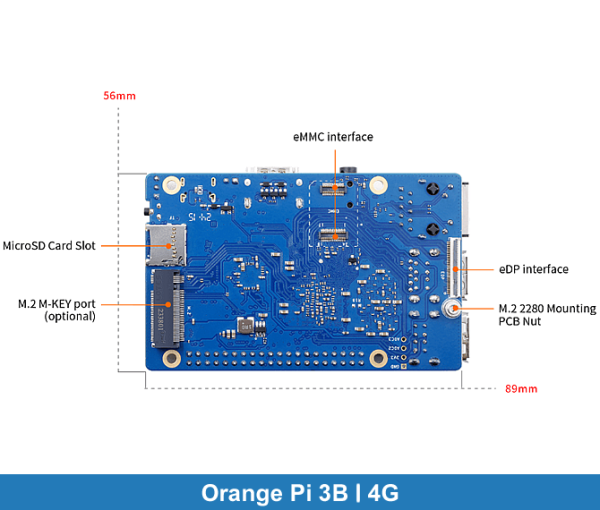

PCB Dimension

56*89mm

Weight

52g
