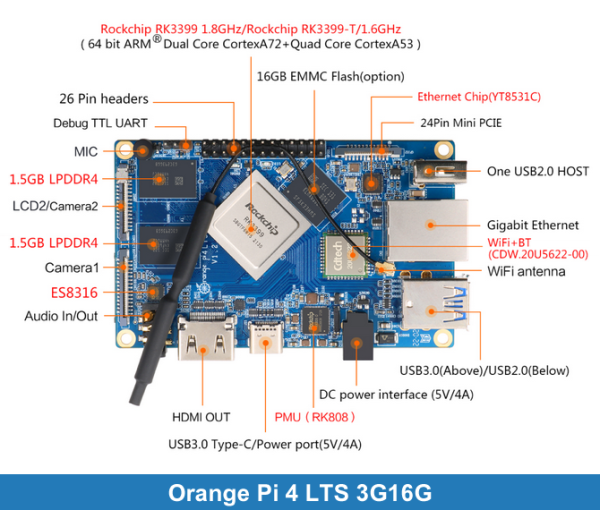

Orange Pi 4 LTS 3G16G

SOC

Rockchip RK3399-T(3GB)

CPU

• Based on the large and small size of big.LITTLE core architecture:Dual-core Cortex-A72 (large core)+ Quad-core Cortex-A53(small core)
• 6-core ARMR64-bit processor ,main frequency speeds up to 1.6GHz(3GB)/1.8 GHz(4GB)

GPU

• High-performance Multi-core Mali-T860 GPU
• Supports OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,DX11
• Support for AFBC

PMU

RK808 PMU

Memory

3 GB LPDDR4

Onboard Storage

• 16GB EMMC Flash
• MicroSD (TF) Card Slot

Onboard Ethernet

Support 10/100M/1000M Ethernet (YT8531C)

Onboard WiFi+BT

• CDW.20U5622-00
• Support IEEE 802.11 a/b/g/n/ac, 2T2R • Support BT 5.0

Video

• HDMI 2.0,Supports 4K@60fps output
• 1* DP 1.2(Display Port), Supports 4K@60fps output
• Supports Dual MIPl-DSI ( 4 lines Per Channel )

Audio

• Output: 3.5mm Jack and HDMI2.0a
• lnput: MIC

Camera

2 * MIPI-CSl Camera Connector (MIPI_RXO、MIPI_TX1/RX1)

USB

2 * USB2.0 ,1*USB3.0,1 * USB3.0 Type-C

Debug UART

3 Pin

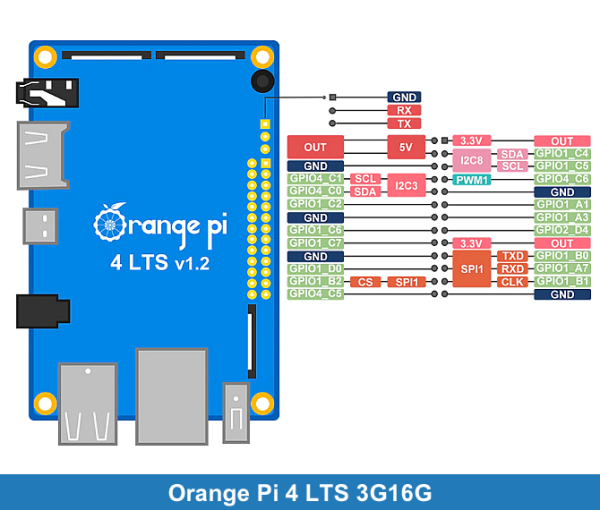

GPIO

26 Pin

PCIe

Support Mini PCIe port

Key

Upgrade Key & Reset Key

Power Supply

DC 5V/3A or 5V/4A, TYPE-C 5V/4A

LED

Power led & Status led

Supported OS

Android, Ubuntu, Debian

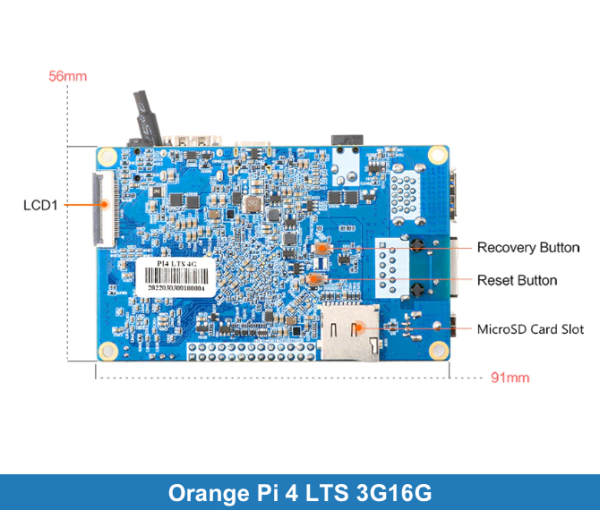

Dimension

56mm*91mm

Weight

49g
