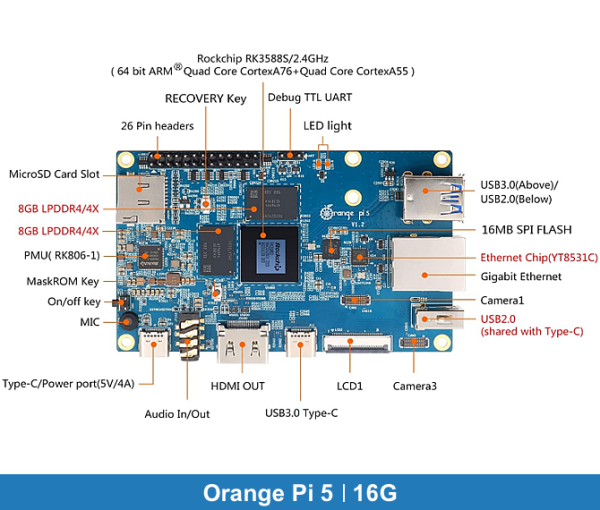

Orange Pi 5 | 16GB

SoC

Rockchip RK3588S (8nm LP process)

CPU

• 8-core 64-bit processor
• Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.

GPU

• Arm Mali-G610 MP4 "Odin” GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
• 3D graphics engine and 2D graphics engine

NPU

Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation

PMU

RK806-1

RAM

16GB (LPDDR4/4X）

Memory

• QSPI Nor FLASH 16MB
• MicroSD (TF) Card Slot
• M.2 M-KEY Socket

USB

USB3.0 × 1
USB2.0 × 2
Type-C (USB3.1) ×1

Video Output

• HDMI2.1, up to 8K @60Hz
• DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
• 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz

Camera

• MIPI CSI 4Lane
• 2 * MIPI D-PHY RX 4Lane

Audio

CODEC: ES8388
• 3.5mm headphone jack audio input/output
• Input: Onboard MIC
• HDMI 2.1 eARC

Ethernet

10/100/1000Mbps Ethernet

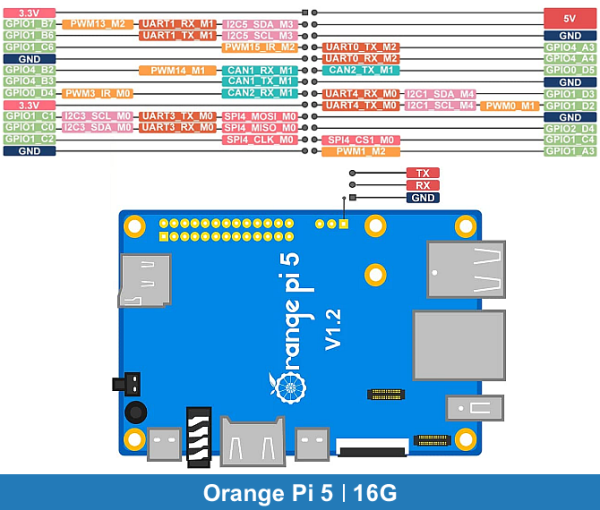

Expansion Port

For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.

M.2 M-KEY Socket Expansion Slot

Support PCIe NVMe SSD
Support custom PCIe Wi-Fi6+BT5.0 module

Button

1×MaskROM key
1×Recovery key
1×On/Off key

Power Source

Support Type-C power supply, 5V @ 4A

LED

Power indicator: red
Status indicator: green

Debugging

3 Pin debug serial port (UART)

Supported OS

Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu、Debian、Android12

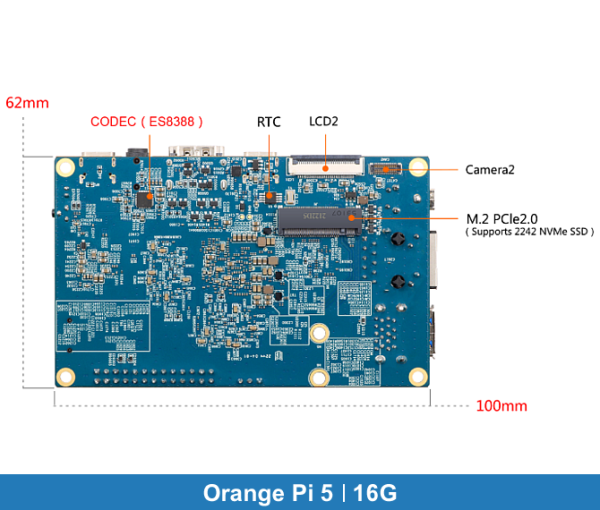

Dimension

62mm*100mm

Weight

46g
