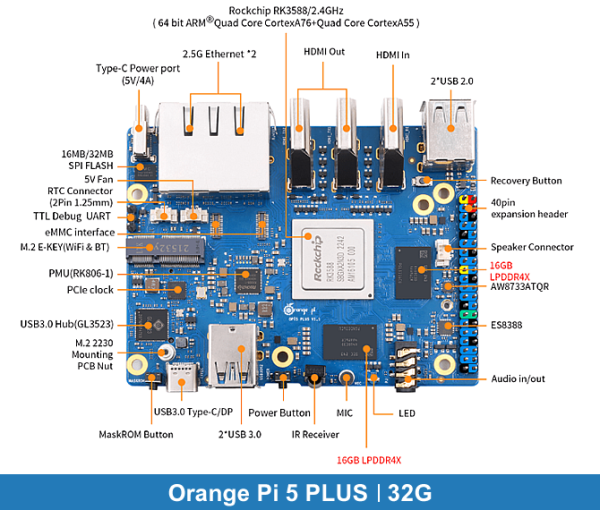

Orange Pi 5 PLUS | 32GB

SoC

Rockchip RK3588 (8nm LP process)

CPU

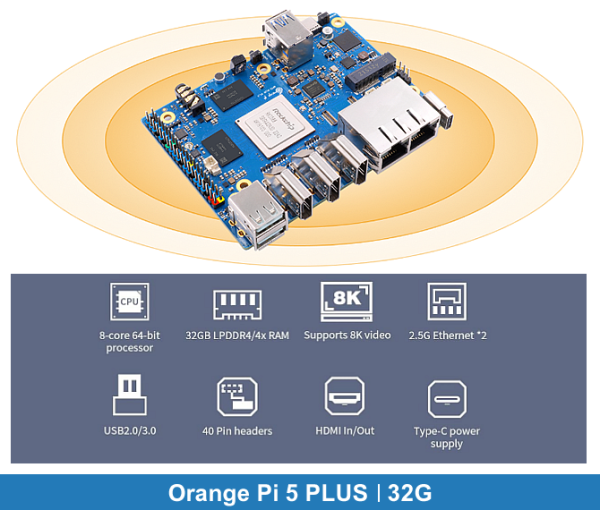

• 8-core 64-bit processor
• 4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors

GPU

• Arm Mali-G610
• Built-in 3D GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2

NPU

Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power

PMU

RK806-1

RAM

32GB LPDDR4/4x）

Memory

• QSPI Nor FLASH: 16MB/32MB
• MicroSD card slot: up to 128GB

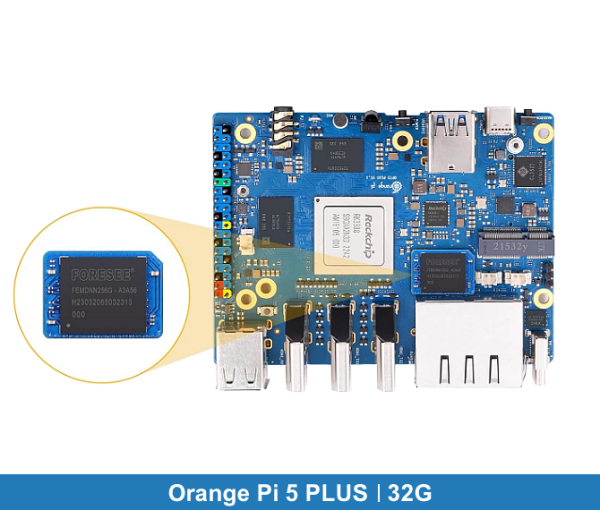

• eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached
• M.2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2,000 MB/s

USB

USB3.0 × 2
USB2.0 × 2
Type-C ×1

Video

• 2x HDMI2.1 out up to 8k@60FPS
• 1x Type-C with DP TX 1.4A，up to 8K@30FPS
• 1x HDMI in with up to 4K@60FPS
• 1 x MIPI DSI TX 4 Lane，up to 4K @60Hz

TP interface

1x 6Pin FPC socket

Camera

• 1XMIPI CSI 4 Lane

Audio

CODEC:ES8388
• 1xAudio 3.5mm jack with mic
• 1xMIC In
• 1xHDMI 2.1 eARC
• 1xSPK

Ethernet

2xPCIe 2.5GLAN（RTL8125BG)

Expansion Port

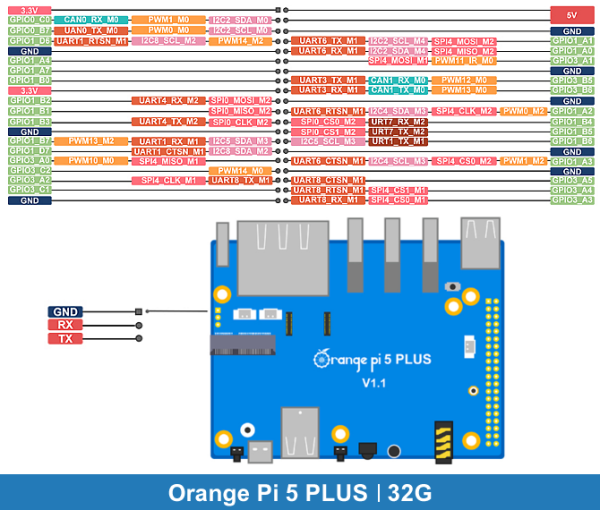

40Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO

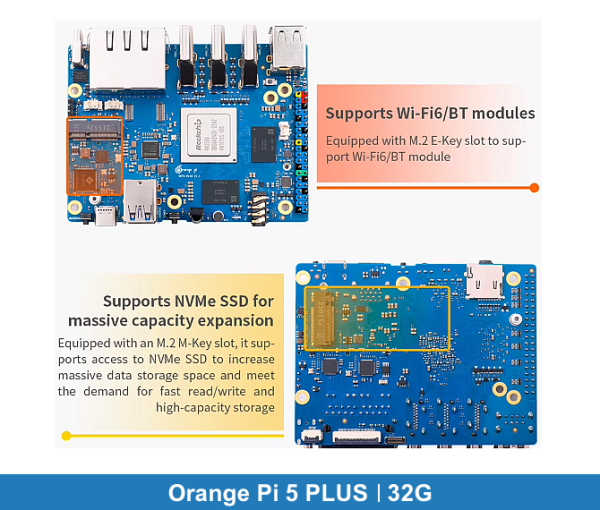

PCIe M.2 M-KEY Socket

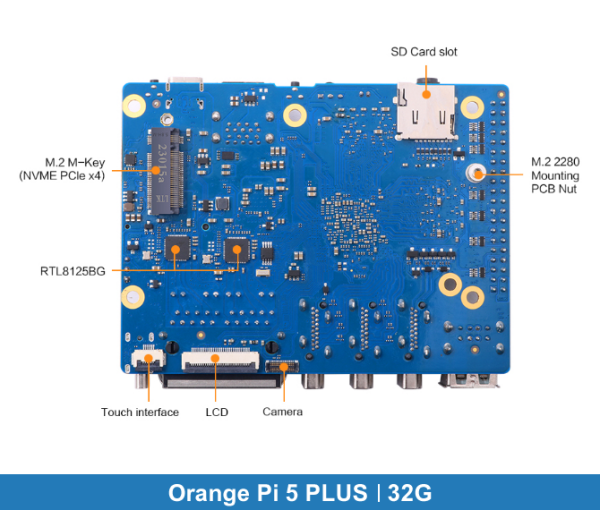

M.2 connector M key(bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD

PCIe M.2 E-KEY Socket

M.2 connector E key(top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0,2230 Wi-Fi6 /BT supported

Button

1×MaskROM key
1xRecovery
1×on/off key

Power Source

Support Type-C power supply, 5V@4A

IR receiver

1x IR receiver tube

LED

RGB LED side light

FAN

5V FAN

RTC

2Pin: RTC backup battery

Debugging

3Pin debug serial port (UART)

Supported OS

Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu22.04、Debian11、Android12
