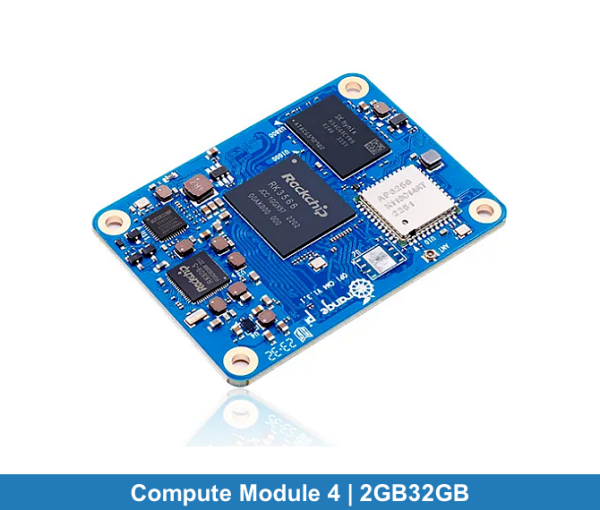

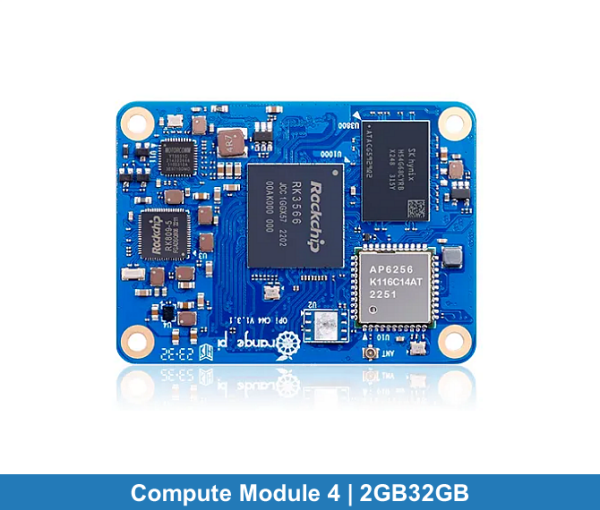

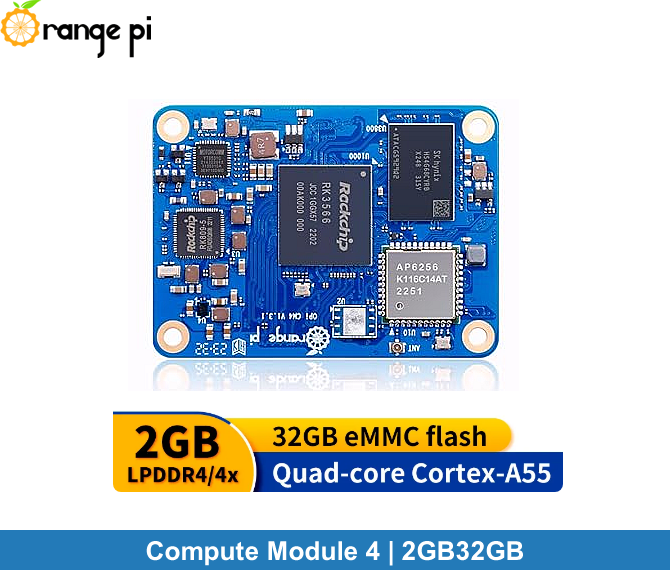

Orange Pi Compute Module 4 | 2GB-32GB

SoC

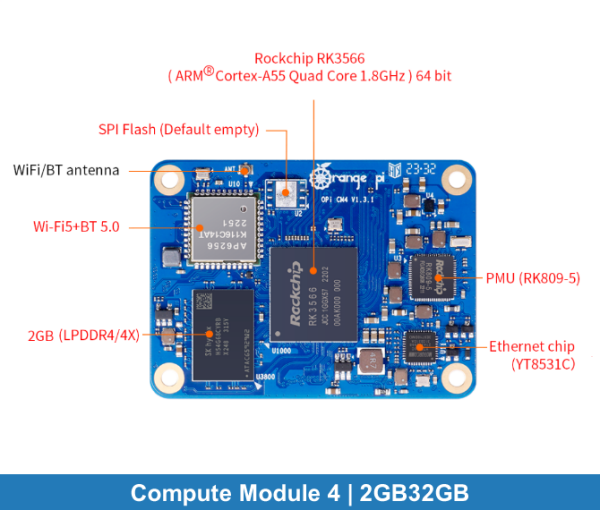

 RockChip RK3566

CPU

 Quad-core 64-bit Cortex-A55 processor，22nm advanced process, up to 1.8GHz main frequency

GPU

• ARM Mali G52 2EE graphics processor
• Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
• Embedded high performance 2D acceleration hardware

NPU

• Integrated RKNN NPU AI gas pedal, 0.8Tops@INT8 performance
• Supports Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet

VPU

• 4K@60fps H.265/H.264/VP9 video decoding
• 1080P@100fps H.265 video encoding
• 1080P@60fps H.264 video encoding

PMU

 RockChip RK809-5

RAM

 2GB ( LPDDR4/4x）

Memory

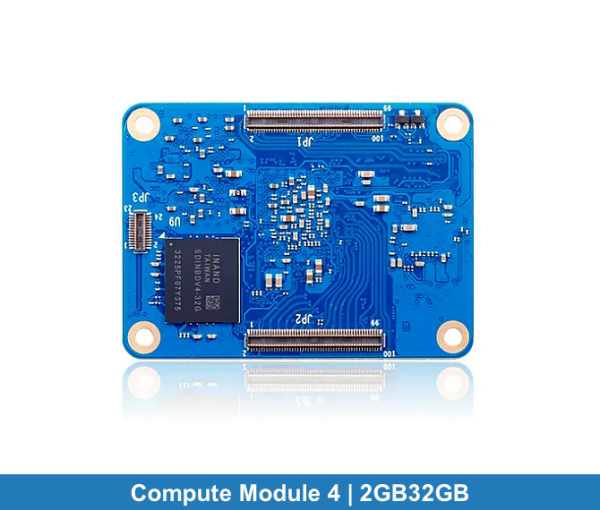

• 32GB  On-board eMMC
• SPI Flash: default empty post

Wi-Fi + Bluetooth

 Wi-Fi 5+BT 5.0，BLE（20U5622）

Ethernet transceivers

 10/100/1000Mbps Ethernet (on-board PHY chip : YT8531C)

Interface

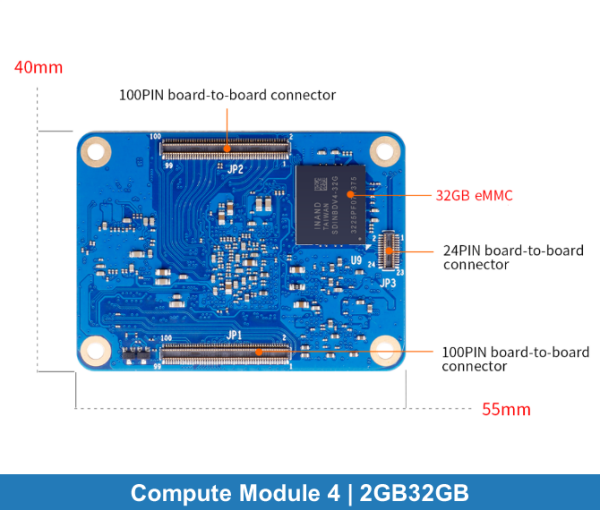

• 100Pin*2, 24Pin*1, contains the following signals:
• 10/100/1000Mbps Ethernet MDI signals
• 1* HDMI 2.0 interface up to 4K@60fps
• 1* 2-lane MIPI DSI display interface
• 1* 4-lane MIPI DSI display interface
• Embedded Display Port (eDP)
• 1* 4-lane MIPI CSI camera interface
• SATA3 or PCIe
• USB3.0*1+USB2.0*3
• RESET, MASKROM, RECOVERY
• Headphone jack Audio input and output signals
• DC 5V input power supply, DC3.3V and 1.8V output power supply

Supported OS

 Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH)

 based on OpenHarmony and other operating systems.

PCB

 55X40mm

Weight

 12g
