Orange Pi Zero 3 | 4GB

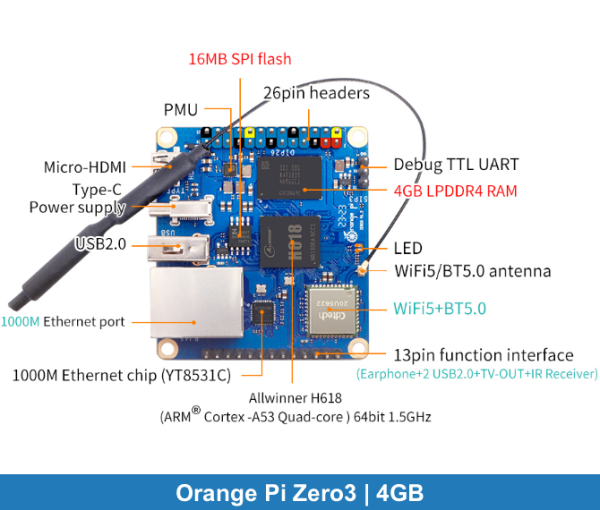

CPU

Allwinner H618 Quad-core Cortex-A53 processor 1.5GHz

GPU

• Mali G31 MP2
• Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1

Memory

4GB LPDDR4

On-board storage

16MB SPI Flash

Power management

AXP313A

On-board WiFi + Bluetooth

Supports WiFi5 and Bluetooth 5.0

Network

10M/100M/1000M Ethernet interface

Audio input/output

13Pin expansion port supports 2-ch output 1-ch input

Video output

• Micro HDMI up to 4K@60fps
• TV-Out:13Pin supports 1-ch TV CVBS output

UART

3Pin Debug UART

USB

USB 2.0 * 3(two of which lead from the expansion board)

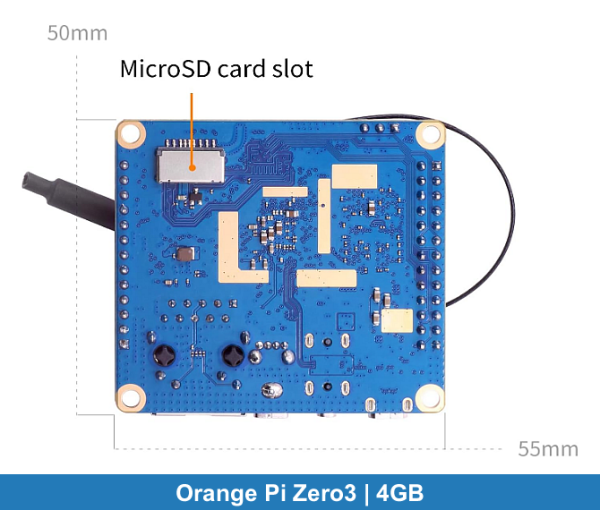

SD card interface

Micro SD card interface

Expansion interface

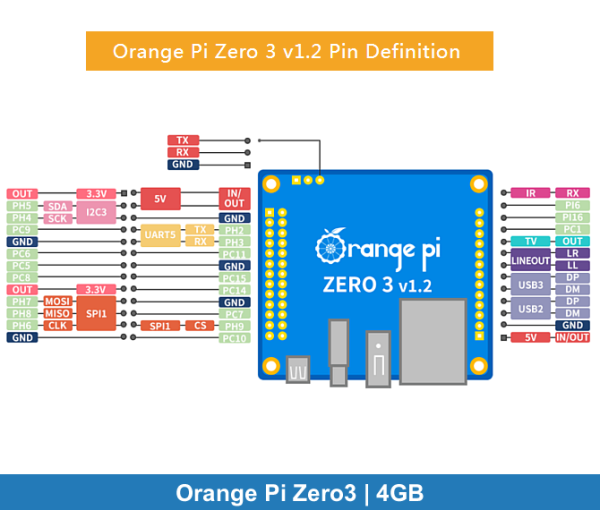

• 26Pin GPIO interface
• 13Pin GPIO interface

Power input

5V3A，Type-c connector

OS Support

Android 12 TV，Debian11，Debian12，Ubuntu22.04，Ubuntu20.04

PCB

50mm*55mm
